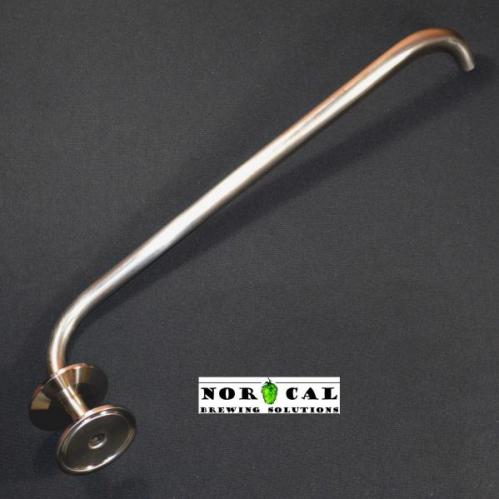

Tri Clover Whirlpool Arm
2” TC x 2” TC x 0.5” OD Tube
304 Stainless Steel
CHARACTERISTICS and SPECIFICATIONS:
· 304 Stainless Steel
· Heavy duty, extra-thick tube is .5” outer diameter. Resists dents and bending.
· 2” tri-clover connection on outside edge of tube
· 2” tri-clover connection on middle section of tube
· Length between outer edges of facing tri-clover fittings is 1-5/8”
· Standard tube length from center 1.5” tri-clover face to back of 90 degree bend is 2-1/8”
· Standard tube height from back of 90 degree bend to end of tube is 10”
· Standard over-all length is 11-3/4”.
· All measurements are targeted to within 1/4”
Specify custom length or height through pull-down menus (round UP to nearest half inch) and enter exact size desired in the text box area in the shopping cart screen
