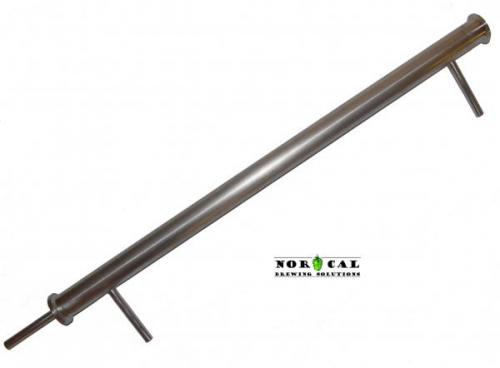

Jaybird 1.5 Inch Tri Clover 304 Stainless Steel Distilling Condenser
Jaybird 1.5 Inch Tri Clover 304 Stainless Steel Distilling Condenser
Jaybird 304 Stainless Steel Distilling Condenser Tri Clover End View
Jaybird 304 Stainless Steel Distilling Condenser Output Port View
Jaybird 304 Stainless Steel Distilling Condenser Inner Shaft View

Still Condenser - Jaybird

gray stars
Jaybird 1.5" Tri Clover 304 stainless steel distilling condenser designed for brandy, bourbon, rum, and tequila
$179.99
SKU 2109
Qty

Jaybird Distilling Condenser

304 Stainless Steel – 1/2” Tri Clover Connection

32.5” Long x 1.5” Diameter, 1/2" Diameter Inner Jacket Tubing



“Pot Head” style 304 stainless steel distilling condenser designed for distilling:

·         Bourbon

·         Brandy

·         Rum

·         Tequila

CHARACTERISTICS and SPECIFICATIONS:

·         Cndenser column is 30.5” x 1.5” diameter

·         32.5” x 5.5” over-all length x width, 3.6 pounds weight

·         1.5” Tri Clover connection. Clamps (SKU# 0808) and gaskets (SKU# 1676) sold separately

·         1/2” inner tube of .049 thickness. A total of 5 welded heat sinks (see right-most picture) assist in faster, more efficient condensing while using less water

·         All components 304 Stainless Steel, TIG welded

·         Water jackets and outlet port are all 1/2" outer diameter, .049 thickness, and approximately 3.75” long

Also available with 1/2” NPT Male water port connections. See SKU# 3347.

100% MADE IN USA
