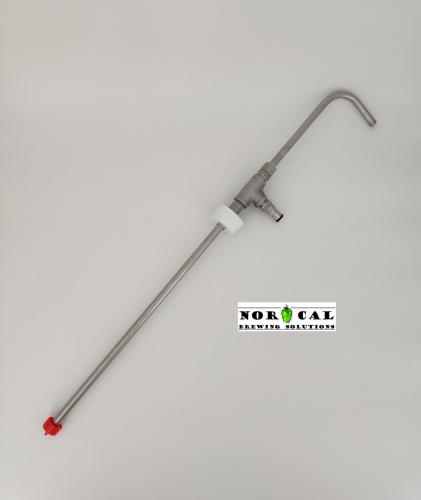

Jaybird Sanke Keg Tank Gas Pushed Transfer System

Transfer Tool - Keg

gray stars

Use any type of compressed gas to rack from a Sanke Keg (with spear removed).

$126.99
SKU 3722
Racking Cane Type:
Qty

Sanke Keg Transfer Tool

(for commercial Sanke Kegs)

304 Stainless Steel



NEW!!! Replace the standard racking cane with a custom connection racking cane (scroll to the bottom for details).

Use compressed gas of your choice (CO2, Nitrogen, etc.) to rack from a commercial Sanke keg to any other vessel.

Works best with half barrel and tall quarter barrel and sixtel kegs, (short kegs will leave an excessive length of racking cane protruding from the top).

CHARACTERISTICS and SPECIFICATIONS:

·         All metal components are 304 Stainless Steel

Racking Cane and Compression Fitting:

·         Over-all length is 29 inches long

·         Draw tube is .5” outer diameter. Accepts any type of .5” inner diameter hose

·         Pass-through compression fitting slides up and down the draw tube, adjusting to fit specific keg’s height

·         High temperature o-ring sits inside compression fitting – Prevents liquid and gas from passing through fitting

Transfer Tool Body:

·         Slides up and down racking cane while holding custom-drilled #11 Stopper (included) in place

 CO2 Ball Lock Connector:

·         Use a standard “Gas In” Ball Lock (SKU# 0132 or SKU# 0134 – sold separately) to quickly connect and disconnect CO2 or other gas source

NEW!!! Use the pull-down menu to replace the standard racking cane with one of the following connection type racking canes:

·         .75 inch Tri Clover connection (SKU# 3104)

·         1.5 inch Tri Clover connection (SKU# 2882)

·         2 inch Tri Clover connection (SKU# 3102)

·         1/2" NPT Male connection (SKU# 3093)

·         Liquid Out Ball Lock connection (SKU# 3103)

 YouTube Video: Jaybird Carboy Contents Transfer Tool by NorCal Brewing Solutions
