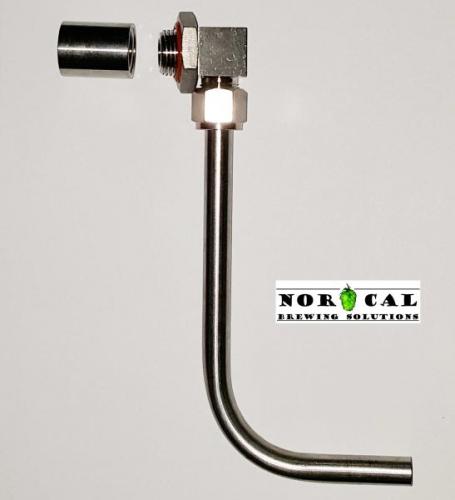

NPT Whirlpool / Recirculation Tube
Weldless Connection, Compression Fitting
1/2" NPT Female x 8 x 0.5 OD Tube
304 Stainless Steel
CHARACTERISTICS and SPECIFICATIONS:
· No-weld mounting to any kettle, keg, drum, or other boil vessel with 7/8" diameter drilled hole
· All metal components are 304 Stainless Steel
· Tube is .5 outer diameter. Resists dents and bending
· 1/2" NPT female coupling connection tightens to wall on outside of vessel
· High temperature red O-Ring goes inside vessel, tightens up against vessel wall, prevents any leakage
· Nut tightens up against O-Ring for tight connection against vessel wall, but allows rotation of tube side
· Compression fitting allows easy threaded connection / disconnection of tube while coupling stays in place
· Standard tube length from center of vessel hole to bottom edge of tube is 7-5/8
· Over-all length is 8
· All measurements are targeted to within 1/16
Need a welded connection instead? (see Other items you might want to order below).
Specify custom length through pull-down menu (round UP to nearest inch) and enter exact size desired in the text box area in the shopping cart screen
