Compression Tube - 1.5 Inch Tri Clover x 1.5 inch Tri Clover x 6 inch x .5 inch Tube
Compression Tube - 1.5 Inch Tri Clover x 1.5 inch Tri Clover x 6 inch x .5 inch Tube
Compression Tube - 1.5 Inch Tri Clover x 1.5 inch Tri Clover compression end

Tri Clover - Compression Tube - 1.5" TC x 1.5" TC x 6" x .5" Tube

gray stars
Tri Clover Compression Tube - 1.5" TC x 1.5" TC x 6" x .5" diameter tube. CUT TO YOUR EXACT SPECIFICATIONS.
$44.99
SKU 2539
Specify size:
If modifying length, please specify custom size:
Qty

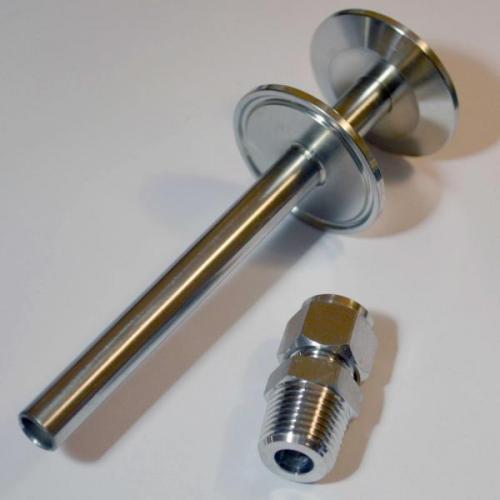

Tri Clover Compression Tube

1.5 TC x 1.5 TC x 6 x 0.5 OD Tube

304 Stainless Steel



Attach 1/2" NPT Female items using a compression fitting inside a vessel while you quick connect / disconnect sanitary Tri Clover connections on the outside!

This is basically our Tri Clover Straight Tube (SKU# 3053) but with a compression fitting added.

CHARACTERISTICS and SPECIFICATIONS:

         304 Stainless Steel

         Heavy duty, extra-thick tube is .5 outer diameter. Resists dents and bending.

         1.5 tri-clover connection on outside edge of tube

         1.5 tri-clover connection on middle section of tube

         Length between outer edges of facing tri-clover fittings is 1-5/8

         Standard tube length from center 1.5 tri-clover face to end of tube is 4-3/8

         Standard tube length from center 1.5 tri-clover face to start of compression fitting is 3-1/2

         Standard over-all length (including compression fitting) is 7

         All measurements are targeted to within 1/16

Specify custom length through pull-down menu (round UP to nearest half inch) and enter exact size desired in the text box area in the shopping cart screen
