Weldless Draw Tube for Converted American, European Sanke Kegs

Draw Tube - 1/2” Stainless - Weldless

gray stars
Draw tube portion of weldless dip tube.
$9.99
SKU 2500
Specify size:
If shortening length and/or height, select pull-down menu and specify custom size below (minimum is 2-1/8 inches):
Qty
15

Stainless Steel Draw Tube

For Converted Sanke Keg / Keggle

Sized for Weldless Attachment

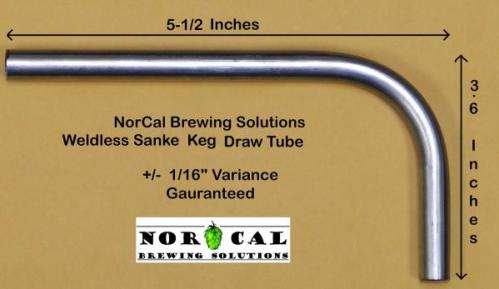

5.5" long x 3.6" tall draw tube specifically designed to be used in a keg or keggle that has been converted into a Hot Liquor Tank (HLT), Mash / Lauter Tun (MLT), or Boil Kettle (BK).

Because it is designed for WELDLESS attachment it is shorter than our WELDED attachment draw tube (SKU# 909) in order to accommodate an NPT coupling on the INSIDE of the keg.

It is the same HEIGHT as our welded attachment draw tube.

The draw tube is the pick-up tube part of a dip tube. It does NOT include compression fitting or attachment nut. If you need a complete Weldless Dip Tube, use SKU# 2501.

Works with ALL Half Barrel (15.5 gallon) American and 50 Liter (13.2 gallon) European Sanke kegs.

Does NOT work with Coors “Belly Kegs”. (Use SKU# 2501-Coors-Weldless)

CHARACTERISTICS and SPECIFICATIONS:

·         304 Stainless Steel

·         Outer diameter: 1/2”

·         Vertical measurement: 3-5/8”

·         Horizontal measurement: 5-1/2”



Length and/or height can be SHORTENED (use pull-down menu, which will add $10 charge) to fit your exact needs.

If you need a LONGER length and/or height click <COMING SOON> for SKU# <TBD>.

IF "CUSTOM SIZE" IS NOT SELECTED IN THE PULL-DOWN MENU YOU WILL RECEIVE A 5.5" X 3.6" DRAW TUBE.

If changing length and/or height: In shopping cart, you will be asked to give the following measurements:

1) Distance (horizontal)

2) Distance (vertical)

Typically in a converted Sanke keg application (15.5 gallon and 50 liter kegs) the measurements will be close to the following:

  • Vertical measurement: 3-5/8" (3.6 inches)
  • Horizontal measurement:
    • Welded connection (coupling welded to OUTSIDE of keg): 7.5" (See SKU# 909)
    • Weldless connection (bulkhead coupling is INSIDE of keg): 6" (The SKU you are viewing)

If you feel comfortable cutting the dip tube yourself, you can specify a slightly larger size than you need, then cut it down (using a hack saw) to fit your application./p>
