3" Tri Clover connection. Exhaust Port. Designed for 4" Tri Clover Sight Glass. Approximately 7-1/4" from underside of lid to tip of downcomer.

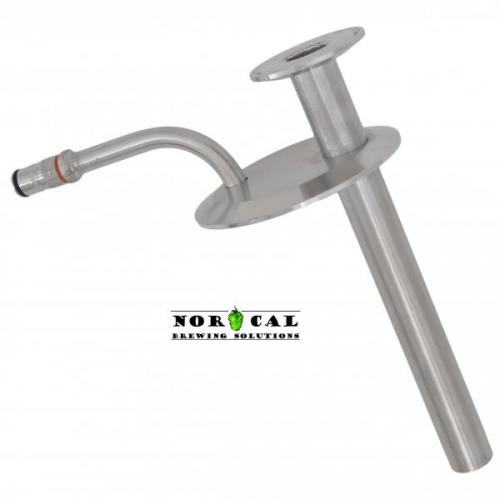

Jaybird™ 3 Inch Tri Clover Yeast Brink
with 4 Inch Tri-Clover Bottom
(Built-in Exhaust Port)
This is the yeast brink body that we sell as part of our “Yeast Brink – 3” TC x 4” Sight Glass” kit (SKU# 3762).
This item is perfect if you already have an existing 4-inch Tri Clover sight glass or other 4-inch tri-clover / tri clamp container you wish to use as a yeast collection device.
COMPATIBLE WITH MOST (but not all) 4-INCH SIGHT GLASSES: Inner diameter of 4-inch sight glass must be at least 3-3/4”. (Especially important regarding Spike Brewing sight glasses).
Extra-large downcomer tube extends 7.25 inches below the bottom of the 4-inch tri clover cap (make sure your container is at least 7.5 inches deep)
· Add, remove, and harvest yeast from the bottom of a conical fermenter
· Add and remove hops from the bottom of a conical fermenter (*See “Optional” section, below).
· Force Carbonate beer inside the fermenter
… All in an oxygen-free environment. And the exhaust port keeps the contents of the fermenter as undisturbed as possible!
At the start of fermentation, yeast love oxygen. You can use this Yeast Brink to:
· Oxygenate wort inside the fermenter prior to pitching yeast
Imagine… Taking a conical full of fresh beer wort and injecting yeast into it – yeast that was harvested from a conical that is finished with fermentation!
Imagine… 1) Placing pellet hops in a sight glass... 2) Dumping a beer sample from a conical into the sight glass to dissolve the hops…, then 3) Pushing those hops right back into the conical for dry hopping!
The exit port is a standard Gas Ball Lock post, accepts any standard barbed (SKU# 0132) or flared (SKU# 0134) gas ball lock connector (not included).
· If hop transfers are your top priority: Consider using the pull-down menu (above) to have us shorten the downcomer tube by 1/4" - 3/8”. The shorter tube gives more clearance to better facilitate hop transfers.
CHARACTERISTICS and SPECIFICATIONS:
· 304 Stainless Steel
· 3 Inch Tri Clover connection at top, 4 Inch Tri Clover connection at bottom
· Down comer tube extends 7.25” below the bottom of the 4-inch tri clover cap.
